Non-Linear Stiffness Curve Wire Rope Isolator JGX-2228D-665B Eco-Friendly All-Metal Mount for Industrial Equipment

JGX-2228D-665B Non-Linear Stiffness Wire Rope Vibration Isolator — Product Overview

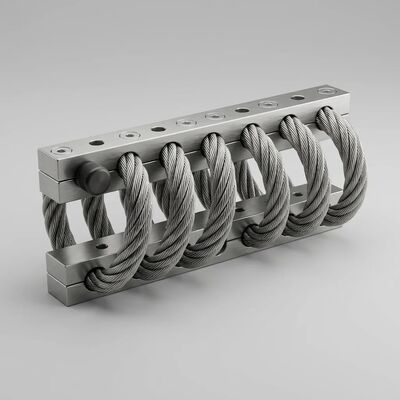

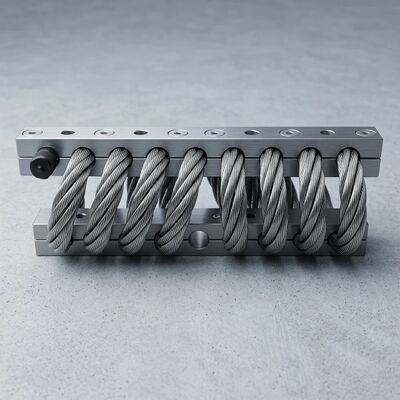

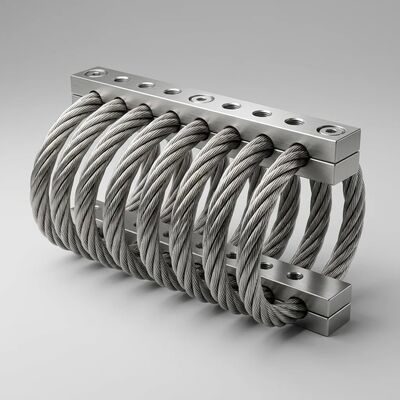

The JGX-2228D-665B wire rope vibration isolator delivers advanced non-linear stiffness engineering for industrial vibration control and shock isolation. This model belongs to the JGX-2228 series, utilizing 22.2mm diameter stainless steel 304 stranded cable threaded through precision-machined aluminum alloy 6061-T6 retaining bars to form an 8-loop helical isolation assembly rated for 665kg maximum static load in compression.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a helical loop. As the isolator deflects under load, the cable geometry produces a progressively stiffening response — soft and compliant at low amplitudes for superior vibration isolation, then transitioning to a firmer rate as deflection increases to prevent structural bottoming during shock events. The damping function is the result of relative friction between the cable's individual wire strands. Under dynamic loading, micro-slip at hundreds of inter-strand contact points converts kinetic energy into low-grade thermal dissipation, providing velocity-proportional damping without requiring hydraulic fluids, elastomeric elements, or active control systems.

The cables, which are made of stainless steel AISI 304, exhibit superb water-proof characteristics, exceptional corrosion resistance, and steady mechanical performance throughout the entire service life. With their corrosion resistant, all-metal construction, Xi'an Hoan's wire rope vibration isolators are environmentally stable, high-performance devices that are unaffected by temperature extremes, chemicals, oils, ozone, UV radiation, and abrasive media.

Non-Linear Stiffness Curve Technology

The defining engineering advantage of the JGX-2228D-665B is its non-linear progressive stiffness curve. Conventional linear-rate isolators force a design compromise: soft enough for low-amplitude isolation versus stiff enough for overload protection. The JGX-2228D-665B resolves this through cable geometry that produces a continuously variable spring rate across the deflection range.

Three mechanisms interact to produce this behavior:

• Geometric Stiffening: As the preformed helical cable loops deflect, the effective radius of curvature decreases, altering the bending moment arm. This produces a progressive increase in the force required for each additional millimeter of displacement, creating a built-in overload protection mechanism without external snubbers or travel stops.
• Strand Compaction: Under increasing compressive load, individual wire strands within the 7*19 cable construction reorganize and compact, engaging additional inter-strand contact points. This increases the effective cross-sectional bending stiffness as a function of load magnitude.
• Friction-Activated Amplitude-Dependent Damping: The Coulomb friction between individual wire strands scales naturally with input amplitude. Small vibrations encounter low friction for efficient high-frequency isolation; large shock events engage maximum friction for rapid energy dissipation. The damping ratio ranges from 0.15 at low amplitude to 0.25 under shock loading.

The resulting stiffness characteristic transitions smoothly from a lower-rate isolation zone (optimized for steady-state vibration in the 8-50Hz range) to a higher-rate protection zone (preventing excessive displacement during transient shock events rated to 20g/11ms half-sine). This dual-mode behavior eliminates the need for separate isolation stages, reducing system complexity and installation footprint.

Green & Eco-Friendly Compliance — Sustainable Vibration Control

Environmental responsibility is integral to the JGX-2228D-665B design. This isolator contains zero rubber, zero elastomers, and zero synthetic polymers — materials that degrade over time, shed microplastic particulates, and cannot be economically recycled.

• Full Material Recyclability: The AISI 304 stainless steel cable (approximately 60% by mass) and aluminum alloy 6061-T6 bars (approximately 40% by mass) are both infinitely recyclable through established industrial metal recovery channels without downgrading. At end of service life, the two materials are easily separated and processed through standard recycling streams, supporting circular economy objectives.
• Zero VOC Emissions: No volatile organic compounds are released during manufacturing, installation, or operation. The all-metal construction is inherently free of solvents, plasticizers, and curing agents commonly found in elastomeric isolators.
• RoHS Compliance: Certified free of lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) per Directive 2011/65/EU.
• No Creep or Aging: Unlike rubber mounts that harden, crack, and require periodic replacement, the metal construction maintains consistent mechanical properties indefinitely. The typical service life exceeds that of the protected equipment by a factor of 3-5*, reducing replacement frequency and associated material waste.
• Low-Energy Manufacturing: The cable-forming and bar-machining processes employ primarily cold-working techniques with comparatively low energy input versus casting, injection molding, or vulcanization processes used for elastomeric alternatives.
• Clean-Room Compatible: Generates zero particulate emissions during operation. No outgassing of any kind, making the JGX-2228D-665B suitable for enclosed environments, laboratories, and HVAC plenums where air quality is regulated.
• No Lubrication Required: The inter-strand friction damping mechanism is dry and maintenance-free. No greases, oils, or lubricants are needed at any point in the product lifecycle, eliminating another source of potential environmental contamination.

Technical Specifications

Mounting Bars — Material Selection & Surface Treatment

Material of Mounting Bars: Stainless Steel or Aluminum can be selected according to application requirements. Aluminum alloy 6061-T6 is the standard recommendation for most industrial applications due to its excellent strength-to-weight ratio and natural corrosion resistance. Stainless steel 304 is recommended for highly corrosive environments including offshore platforms and chemical processing facilities.

Surface Treatment Selection of Aluminum Mounting Bars:

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keeps the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars, suitable for indoor applications and general industrial use.
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much harder than the white anodized way. The color of the hard anodized aluminum mounting bars is darker than the white anodizing way. Produces a dense oxide layer with surface hardness exceeding 60 HRC. Special use for complex or special requirements of the working conditions of wire rope isolators, including outdoor exposure, high-wear installations, and applications requiring electrical isolation between mounting surfaces.

Key Characteristics of Xi'an Hoan's Vibration Isolators

• No creep or ageing — consistent mechanical properties throughout service life
• High internal damping — inter-strand Coulomb friction provides amplitude-dependent energy dissipation
• Very wide temperature range — reliable operation from -40°C to +120°C without stiffness drift
• Wide variety of possible fittings — multiple bar materials, surface treatments, and mounting configurations
• Rapid and economical prototyping — custom configurations available with short lead times
• Extremely rugged construction and long lifespan — all-metal design resists physical damage
• Excellent combined shock and vibration isolation — single device handles both chronic and transient loads
• Not affected by chemical agents, seawater, ozone, UV rays — suitable for the harshest environments
• Non-linear progressive stiffness curve — adapts dynamically to varying load conditions
• Full RoHS compliance and material recyclability — environmentally responsible design
• Maintenance-free operation — zero lubrication, zero adjustment, zero scheduled service

Application Areas — Wire Rope Vibration Isolator Uses

Frequently Asked Questions — JGX-2228D-665B Wire Rope Isolator

Q: What makes the JGX-2228D-665B stiffness curve "non-linear"?
A: Unlike conventional spring or rubber mounts that produce a constant force-to-deflection ratio, the JGX-2228D-665B cable geometry naturally produces a progressive stiffening effect. At small deflections the isolator is compliant for superior vibration isolation; as deflection increases, the stiffness ramps up to prevent bottoming under shock loads. This is achieved through changes in the cable loop curvature and inter-strand compaction under increasing load — no external mechanisms required.

Q: Is the JGX-2228D-665B truly eco-friendly and recyclable?
A: Yes. Both the stainless steel cable and aluminum alloy bars are 100% recyclable through standard industrial metal recovery processes. The unit contains zero rubber, plastics, or synthetic polymers. It generates no VOC emissions, no microplastic particulates, and requires no lubricants. The manufacturing process uses primarily cold-working techniques with relatively low energy input.

Q: What is the difference between white anodizing and hard anodizing?
A: White anodizing provides moderate surface hardening while preserving the natural aluminum color. Hard anodizing produces a much thicker, denser oxide layer (60+ HRC surface hardness) with a darker gray appearance. Hard anodizing is recommended for outdoor exposure, high-wear installations, and applications requiring electrical isolation. Both treatments provide excellent corrosion protection.

Q: Can the JGX-2228D-665B be used outdoors or in marine environments?
A: Yes. The all-stainless steel cable and hard anodized aluminum bar construction is highly resistant to salt spray, humidity, UV radiation, and temperature extremes. For the most aggressive marine environments, the optional stainless steel 304 bar material provides additional corrosion margin.

Q: How do I select the correct mounting orientation?
A: The JGX-2228D-665B supports compression (vertical load), shear/roll (horizontal load), and 45-degree compression (combined loading) mounting orientations. Our application engineers can recommend the optimal configuration based on your equipment weight, center of gravity, expected vibration spectrum, and available mounting footprint. Contact us with your equipment specifications for a detailed recommendation.

Company Information — Xi'an Hoan Microwave Co., Ltd.

Xi'an Hoan Microwave Co., Ltd. is the professional manufacturer of vibration isolators and mounts, providing top quality energy absorption and vibration isolation solutions to a variety of commercial, industrial, and heavy industry sectors.

Our products cover a wide range, including wire rope vibration isolators, elastomeric shock mounts, friction dampers, and shock absorbers, as well as LC filters and microwave communication components. Established in 2005, with fast development over two decades, we have grown to more than 500 employees including over 100 engineering and technical experts. The company is headquartered in Xi'an High-tech Zone, Shaanxi, China, operating 800 square meters of dedicated production and R&D facilities.

Now, we serve customers across more than 31 provinces in China and almost 25 overseas countries, providing vibration isolation solutions for motor drives, fan systems, punch machines, elevators, compressors, chemical processing equipment, railway and subway systems, bridge engineering, mechanical equipment, large-scale construction, recording studios, theaters, vehicles, vessels, and industrial machinery of all types.

Contact us today to see how our products can benefit your specific equipment application needs, or alternatively you may find one of our many representatives to help you meet your product requirements. Our engineering team provides comprehensive application analysis including load-deflection calculations, vibration transmissibility predictions, and custom mounting configuration design.

Certifications & Quality Assurance

• ISO 9001:2015 Quality Management System — Certified
• RoHS Directive 2011/65/EU — Compliant
• Material Certificates to EN 10204 3.1 — Available Upon Request
• CE Marking — Available Upon Request
• Custom Testing & Validation Reports — Available
