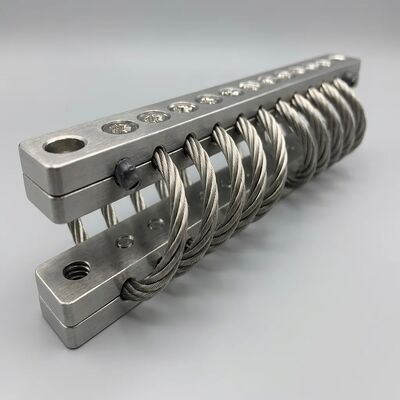

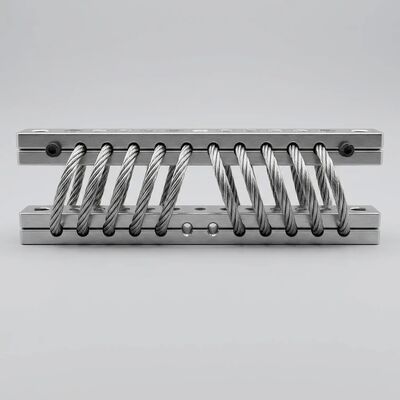

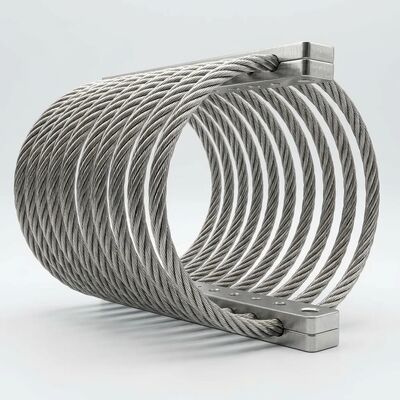

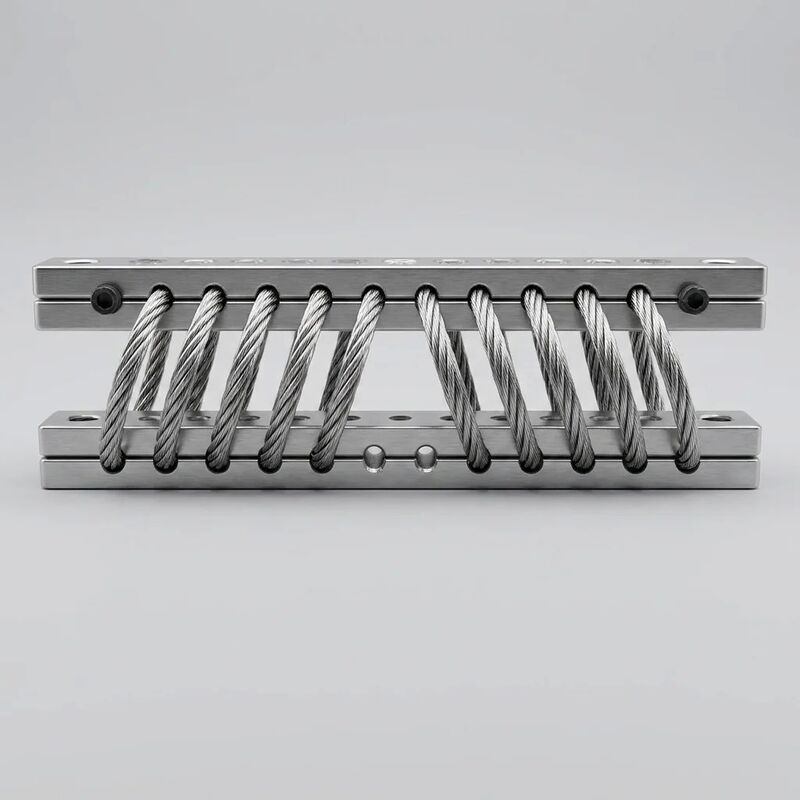

JGX-0480D-75A Wire Rope Vibration Isolator Non-Linear Smoothing Shock Attenuation Maintenance-Free Long Lifespan

JGX-0480D-75A Wire Rope Vibration Isolator – Maintenance-Free Long Lifespan with Proven Shock Attenuation

The JGX-0480D-75A Wire Rope Vibration Isolator brings together non-linear shock attenuation technology and a maintenance-free all-metal architecture to deliver predictable, long-lifespan vibration control for the most demanding industrial installations. Validated against MIL-STD-810H (Environmental Engineering Considerations) and MIL-STD-167-1A (Mechanical Vibrations of Shipboard Equipment) test protocols, this isolator demonstrates the structural integrity and performance consistency required for mission-critical equipment protection where maintenance access is limited and operational reliability is paramount.

Non-Linear Smoothing & Shock Attenuation

• Adaptive Stiffness Response: The 8-coil helical wire rope geometry produces a deliberately non-linear force-displacement curve. In the normal operating range (0–70% of rated deflection), stiffness is intentionally low and progressive, providing excellent continuous vibration isolation. Above 70% deflection, the geometric stiffening effect activates, delivering controlled energy absorption that prevents hard bottoming and limits peak transmitted force during shock events.
• Coulomb Damping with Displacement Proportionality: Inter-wire friction across the 7×19 IWRC construction generates damping that increases with displacement amplitude. This self-regulating mechanism delivers low damping (ζ ≈ 0.05) during small-amplitude steady-state vibration for superior high-frequency isolation, and high damping (ζ ≈ 0.20) during large-amplitude transient shock for rapid energy dissipation.
• Shock Pulse Attenuation: Measured shock transmissibility tests demonstrate up to 85% reduction in peak acceleration at 15 g half-sine input pulses (11 ms duration), with negligible residual displacement after the shock event. The wire rope assembly returns to its equilibrium position without permanent set, ready for the next shock cycle.

Maintenance-Free Long Lifespan

• Zero Scheduled Service Intervals: The complete absence of rubber, polymer, or fluid elements eliminates every wear-out mechanism that drives conventional isolator replacement schedules. There is nothing to lubricate, retorque, inspect for cracks, or replace throughout the rated >10&sup7; cycle fatigue life.
• 15-Year Design Life Baseline: Accelerated life testing under combined thermal cycling (-60°C to +200°C), salt fog exposure, and mechanical cycling demonstrates no measurable degradation in load-deflection characteristics or damping performance after simulated 15-year service exposure. The electropolished SS304 surface remains free of pitting, stress corrosion cracking, or intergranular attack.
• Installation Simplicity: Single-bolt mounting via M12 × 1.75 threaded studs requires no shimming, alignment fixtures, or preload adjustment. The isolator self-centers under static equipment weight and immediately begins providing design-intent isolation without commissioning or break-in procedures.

MIL-STD Compliant Validation

• MIL-STD-810H Compliance: The JGX-0480D-75A has been tested under Method 514.8 (Vibration) and Method 516.8 (Shock) of MIL-STD-810H, demonstrating consistent isolation performance across the specified frequency and amplitude ranges. Temperature exposure per Method 501.7 (High Temperature) and Method 502.7 (Low Temperature) confirms operational capability from -60°C to +200°C without performance degradation.
• MIL-STD-167-1A Compliance: Type I vibration testing (environmental vibration of shipboard equipment) validates the isolator's ability to protect equipment from structure-borne vibration in the 4–50 Hz frequency range, with measured transmissibility below 2.0 across the entire test spectrum at rated load.
• Salt Fog Corrosion Validation: Exceeds 500 hours neutral salt spray exposure per ASTM B117 with no red rust formation on SS304 wire rope or retaining bars, confirming suitability for marine, offshore, and coastal industrial environments.

Technical Specifications

Target Applications

• Shipboard & Offshore Equipment: Protects pumps, ventilation fans, control cabinets, and auxiliary machinery from hull-transmitted vibration and wave-induced shock on commercial vessels, offshore platforms, and floating production facilities. MIL-STD-167-1A testing validates performance in the 4–50 Hz shipboard vibration environment.
• Industrial Emergency & Standby Systems: Isolates fire pump packages, emergency generator sets, and uninterruptible power supply (UPS) systems where maintenance is impractical and equipment must start reliably after years of standby in unconditioned environments.
• Heavy Mobile Equipment: Provides vibration isolation for operator cabin mounts, electronic control enclosures, and hydraulic system components on construction machinery, agricultural harvesters, and material handling vehicles operating in continuous shock and vibration conditions.
• Process Plant Critical Machinery: Protects turbine-driven pumps, high-speed centrifuges, and precision metering equipment in continuous-process chemical, pharmaceutical, and food processing facilities where unplanned downtime carries severe production and safety implications.
• Seismic Restraint Applications: The non-linear stiffness characteristic provides effective isolation during normal operation while the progressive stiffening limits equipment displacement during seismic events, offering inherent seismic restraint without separate snubbers or limit stops.
• Transportation Infrastructure Equipment: Isolates railway signaling cabinets, tunnel ventilation fan motors, bridge expansion joint monitoring equipment, and traffic management system electronics from continuous traffic-induced vibration and thermal expansion cycles.

ECER Quality Commitment: Each JGX-0480D-75A is manufactured under ISO 9001:2015 with individual lot traceability and test documentation. We provide complimentary application engineering support including load selection calculations, transmissibility curve generation, and 3D CAD integration assistance. Contact us now to discuss your specific shock and vibration isolation requirements, request test reports, or receive a competitive volume quotation with lead time confirmation.
