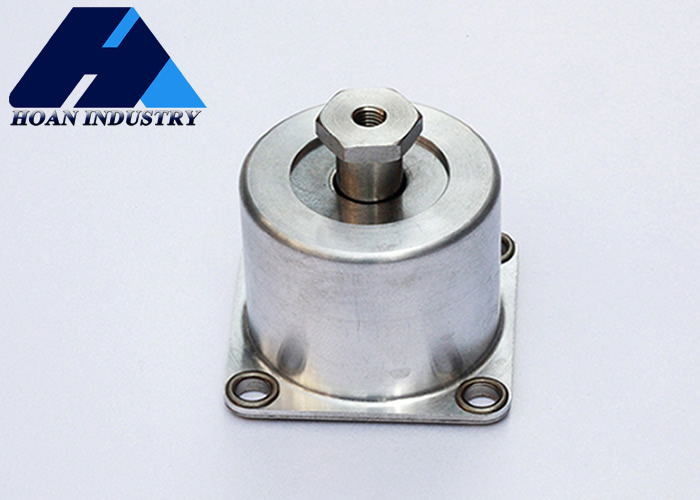

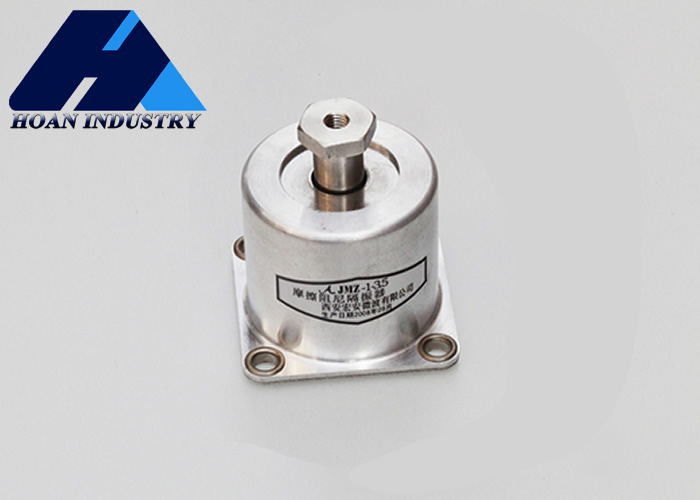

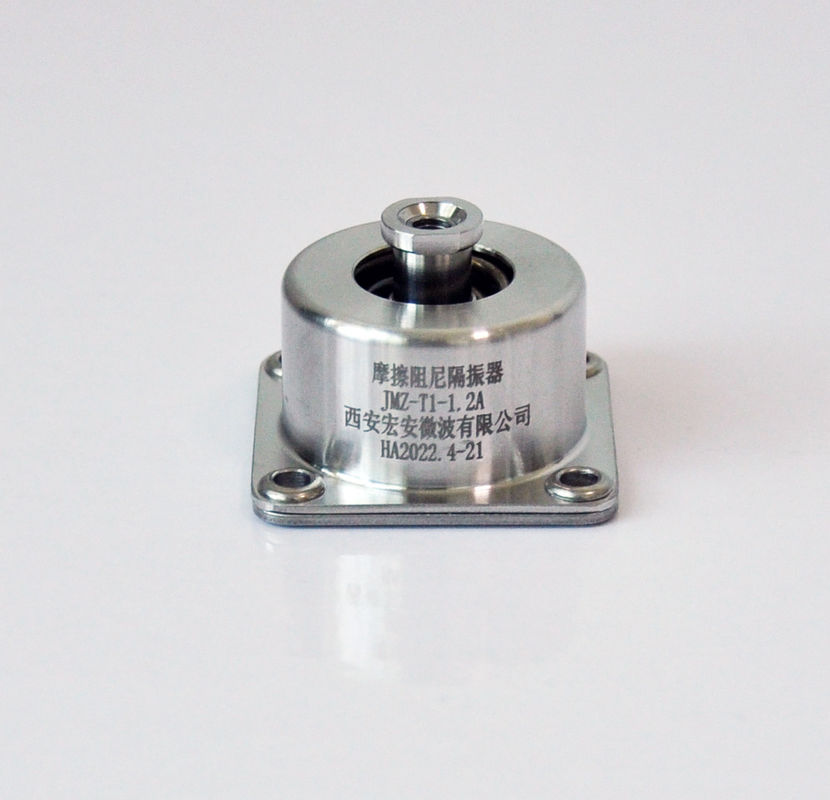

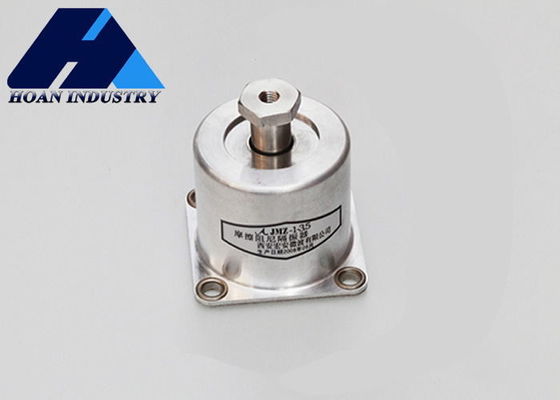

Name: JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.3
Availability: InStock

Casa. > prodotti > Isolatore a molla >

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Luogo di origine:

Cina

Marca:

Hoan

Numero di modello:

JMZ-T1-0.3

Contattaci

Chiedi un preventivo

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

Dettagli del prodotto

Compatibilità:

Compatibile con vari tipi di macchine e attrezzature

Durata:

Di lunga durata

Regolabilità:

Regolabile

Riduzione del rumore:

Efficace

Caratteristiche:

Alta capacità di carico, eccellente isolamento delle vibrazioni, durevole

Dimensioni:

Varie dimensioni disponibili

Colore:

Argento

Rapporto di test dei macchinari:

Non disponibile

Efficienza di isolamento:

Fino a 95%

Modello:

JMZ-T

Utilizzo:

Isolamento delle vibrazioni

Manutenzione:

Basso

Resistenza agli shock:

Forte

Evidenziare:

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Termini di pagamento e di spedizione

Quantità di ordine minimo

Termini di pagamento

L/C, D/A, D/P, Western Union, MoneyGram, T/T.

Prodotti correlati

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Ottieni il miglior prezzo

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Ottieni il miglior prezzo

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Ottieni il miglior prezzo

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Ottieni il miglior prezzo

Contattaci

86-29-88292913

Contatta ora

Descrizione del prodotto

Precision Manufacturing Laboratory Measurement and High-End Communications Vibration Isolation with JMZ-T1-0.3

JMZ-T1 Series: Advanced Vibration Isolation Technology

In precision manufacturing, laboratory measurement, and high-end communications, environmental vibrations can significantly impact equipment performance. The JMZ-T1 Series vibration isolator from Xi'an Hoan Microwave provides an innovative solution to this challenge.

Unlike traditional vibration isolation methods, our friction damping technology acts like a "Tai Chi grandmaster," converting destructive mechanical energy into negligible thermal energy. This process creates an "absolute static zone" for sensitive equipment, ensuring:

Elimination of vibration interference from footsteps, vehicles, and HVAC systems
Protection for nanoscale precision equipment like lithography machines
Clear imaging for electron microscopes and other sensitive instruments
Effective filtering across low to mid-high frequency vibration spectra

Structural Dimensions

Technical Specifications

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Performance Characteristics

Vibration Isolation Performance

Impact Resistance Performance
