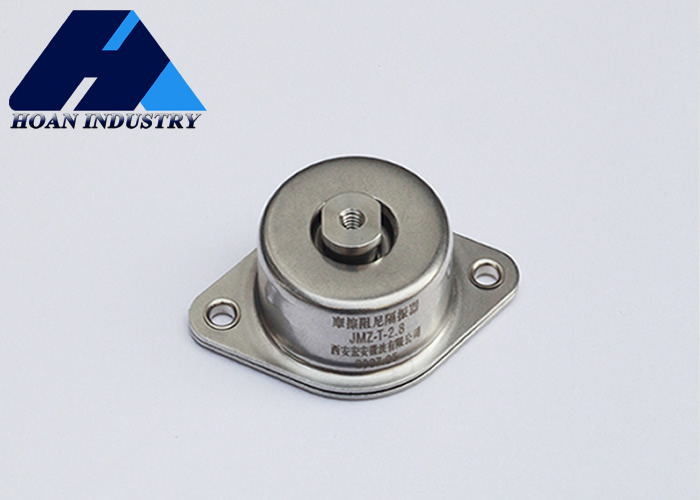

Name: JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T-2.6
Availability: InStock

Casa. > prodotti > Isolatore a molla >

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Luogo di origine:

Cina

Marca:

Hoan

Numero di modello:

JMZ-T-2.6

Contattaci

Chiedi un preventivo

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Dettagli del prodotto

Disponibilità:

Ampiamente disponibile

Product_name:

Isolatore a molla

Larghezza complessiva:

60 mm

Metodo di installazione:

Montato o incorporato

Tipo di montaggio:

Piatto superiore

Struttura:

Elicoidale

Manutenzione:

Bassa manutenzione

Resistenza agli shock:

Forte

Tipo:

Isolatore da vibrazioni

Dopo il servizio di garanzia:

Supporto online

Rapporto di test dei macchinari:

Non disponibile

Garanzia:

1 anno

Stile di design:

Industriale

certificazioni:

UL Listed, RoHS Compliant

Applicazioni:

Supporti per motori industriali

Evidenziare:

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Termini di pagamento e di spedizione

Quantità di ordine minimo

Termini di pagamento

Moneygram, Western Union, T/T, D/P, D/A, L/C.

Prodotti correlati

86-29-88292913

Contatta ora

Descrizione del prodotto

JMZ-T-2.6 Friction Damping Vibration Isolators

Superior Performance with Composite Friction Materials and Stable Damping Force

JMZ-T Series Overview

Independently developed by Xi'an Hoan Microwave Co., Ltd., the JMZ-T Series Friction Damping Vibration Isolators integrate innovative technologies for exceptional vibration control performance.

Key Technical Advantages

Advanced Friction Damping Mechanism: Provides stable damping force unaffected by temperature changes with zero maintenance requirements
Composite Friction Materials: Specially processed materials ensure high friction coefficient with smooth force variation for optimal response to both micro-vibrations and large shocks
Hybrid Structural Design: Combines metal spring load capacity with friction component energy dissipation for independent stiffness and damping adjustment
3D Vibration Isolation: Effective vibration control in all directions for comprehensive protection
Rigorous Quality Control: Comprehensive testing ensures compliance with highest industry standards

Technical Specifications

Model	Pz-Direction Load (kg)	Displacement Under Maximum Load (mm)	d	Weight (g)	Vibration test	Shock test	Resonance frequency (Hz)	Operating temperature range (℃)
JMZ-T-1.4	1.4	≤0.6	ST4*0.7/ M7-7H	≤58	＜4	30g,11ms	＜30	-65～+120
JMZ-T-2.6	2.6	See JMZ-T-1.4 for other specifications
JMZ-T-2.8	2.8	See JMZ-T-1.4 for other specifications

Performance Curves

Vibration curve:

Impact curve:

Application Example
