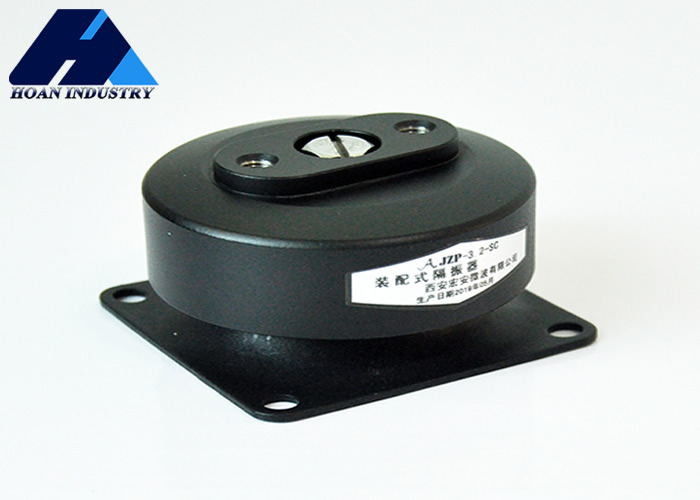

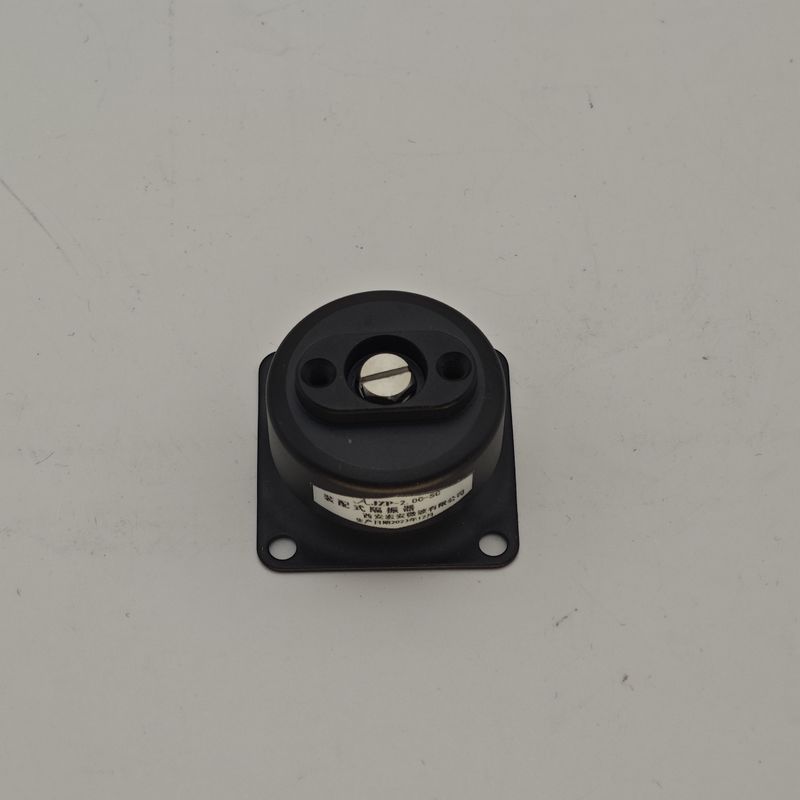

Name: JZP-4.2 Rubber Shock Absorber for Industrial and Automotive Vibration Control
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-4.2
Availability: InStock

Casa. > prodotti > ammortizzatore di gomma >

JZP-4.2 Rubber Shock Absorber for Industrial and Automotive Vibration Control

rubber shock absorber for industrial use

automotive vibration control shock absorber

JZP-4.2 rubber vibration damper

Luogo di origine:

Cina

Marca:

Hoan

Numero di modello:

JZP-4.2

Contattaci

Chiedi un preventivo

JZP-4.2 Rubber Shock Absorber for Industrial and Automotive Vibration Control

Dettagli del prodotto

Resistenza alle intemperie:

Eccellente

Damping Ratio:

0.5

Forma:

Cilindrico

Posizione dello showroom:

Nessuno

Tipo di installazione:

Orizzontale/verticale

Tipo di montaggio:

di larghezza superiore a 30 cm

Altezza:

29 mm

Garanzia:

1 anno

Caratteristiche:

Termoresistente, strappo resistente

Maximum Deflection:

1 inch

Applicazione:

Automotive, industria, macchine

Efficienza di isolamento:

90%

Evidenziare:

rubber shock absorber for industrial use

automotive vibration control shock absorber

JZP-4.2 rubber vibration damper

Termini di pagamento e di spedizione

Quantità di ordine minimo

Termini di pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Prodotti correlati

JZP-5.2 Rubber Shock Absorber for Automotive and Industrial Use

Ottieni il miglior prezzo

JZP-4.2 Rubber Shock Absorber for Industrial and Automotive Vibration Control

Ottieni il miglior prezzo

JZP-3.2 Rubber Shock Absorber M6 Mount for Vibration Damping

Ottieni il miglior prezzo

JZP-2.5 Rubber Shock Absorber for Vibration Isolation 60mm Wide

Ottieni il miglior prezzo

Contattaci

86-29-88292913

Contatta ora

Descrizione del prodotto

JZP-4.2 Rubber Shock Absorber Broad Frequency Adaptability and Vibration Control for High and Low Frequency Applications

Product Attributes

Attribute	Value
Weather Resistance	Excellent
Damping Ratio	0.5
Shape	Cylindrical
Showroom Location	None
Installation Type	Horizontal/Vertical
Mounting Type	Threaded
Height	29mm
Warranty	1 Year
Characteristics	Heat resistant, tear resistant
Maximum Deflection	1 inch
Application	Automotive, industrial, machinery
Isolation Efficiency	90%

Product Description

JZP Series

Broad Frequency Adaptability, Stable and Reliable

In the world of vibrations where frequencies vary widely, the JZP rubber damping isolator stands out as a reliable partner for numerous devices, thanks to its excellent broad frequency adaptability.

It boasts an extremely wide operating frequency range, effectively exerting vibration isolation effects from low frequencies of a few hertz to high frequencies of hundreds of hertz. This is attributed to its advanced material selection and structural design. The properties of the rubber material have been meticulously adjusted to maintain good damping performance across different frequencies. Structurally, the coordinated operation of various components enables the isolator to absorb energy through large deformation at low frequencies and respond quickly to suppress vibration transmission at high frequencies.

In practical application scenarios, this broad frequency adaptability offers significant advantages. In aviation communication equipment, where low-frequency vibrations from aircraft engines and high-frequency vibrations caused by high-altitude air currents coexist, the JZP isolator can handle both simultaneously, ensuring stable signals of communication devices. In postal and telecommunications base station equipment, whether it is low-frequency vibrations caused by nearby vehicle traffic or high-frequency vibrations generated by the equipment's own operation, it can effectively isolate them, ensuring the stable operation of base station equipment and smooth communication.

Dimension Parameter Table

Model	D	H	h	A	B	d1	MG	R
JZP	58	29	17	50	60	∅5.5	M6	5

Technical Parameter Table

Model	Pz Nominal Load (KG)	Deflection Displacement (mm)	Resonant Frequency (Hz)	Working Temperature (℃)	Shock (Ks)	Peak Response G
JZP-2.5	2.5	≤0.3	35±3	-45～+65	100g/6ms	≤3.6km/s²
JZP-3.2	3.2	Same as above
JZP-4.2	4.2	Same as above
JZP-5.2	5.2	Same as above
JZP-6.0	6.0	Same as above
JZP-7.0	7.0	Same as above
JZP-7.5	7.5	Same as above
JZP-8.5	8.5	Same as above
JZP-10.5	10.5	Same as above
JZP-13.5	13.5	Same as above
JZP-15	15	Same as above

Vibration Curve

Impact

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.

Q: Can you customize products for us?

A: Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.

Q: What is the lead time?

A: Sample will usually take 2 to 5 days. For the mass production, it will estimated take 7 to 20 days. Faster delivery when our factory has stock.

Q: Can I get some samples before place order and how long for a sample?

A: Yes, sample order is accepted.

Q: How is your shipping?

A: 1) Worldwide shipping service available
2) Please contact before order as shipping cost varies time to time.

Q: Do you offer discounts for bulk orders?

A: Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
