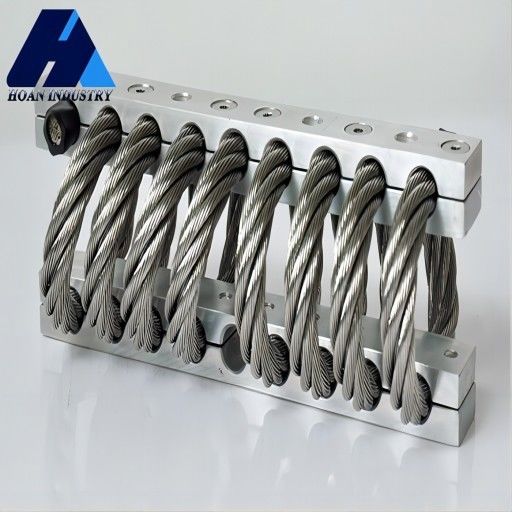

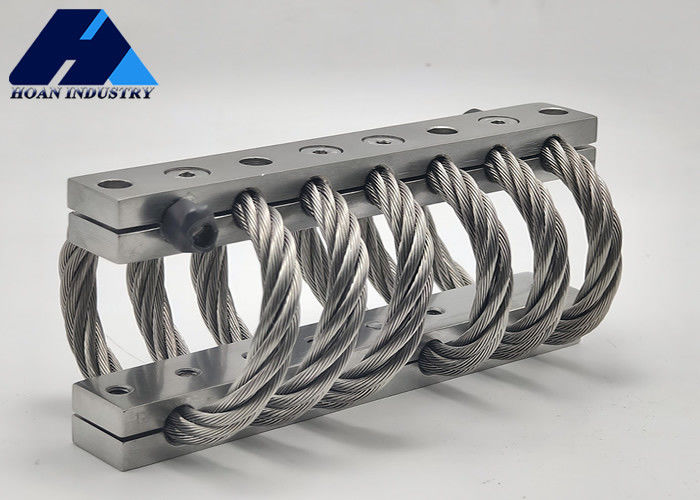

Name: JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0956A-72A
Availability: InStock

Casa. > prodotti > Ammortizzatore di vibrazioni del cavo metallico >

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures

Place of Origin:

China

Marca:

Hoan

Certificazione:

ISO9001:2015

Model Number:

JGX-0956A-72A

Contattaci

Chiedi un preventivo

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures

Dettagli del prodotto

Port:

Xi'an or Specified

Vibration Isolation:

Up to 90%

Customization:

Available upon request

Axial Stiffness:

50N/mm

Compression Ratio:

1.2:1

Isolator Type:

Helical

Shape:

Circular

Corrosion Resistance:

High

Packing:

Standard Packing

Isolation Efficiency:

90%

Mounting Orientation:

Vertical

Isolation Frequency Range:

5Hz to 100Hz

Design Style:

Industrial

Vibration Frequency:

10-100Hz

Wire Rope Material:

Galvanized Steel

Termini di pagamento e di spedizione

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

Prodotti correlati

JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements

Ottieni il miglior prezzo

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures

Ottieni il miglior prezzo

JGX-0956A-75A Isolatore di vibrazione per apparecchiature aerospaziali e militari con rigidità non lineare

Ottieni il miglior prezzo

JGX-0956A-80A Isolatore di vibrazione da filo con struttura e interfaccia materiali personalizzabili

Ottieni il miglior prezzo

Contattaci

86-29-88292913

Contatta ora

Descrizione del prodotto

JGX-0956A Series

The wire rope isolator JGX-0956 series, recognized as an industry benchmark in vibration isolation, has gained widespread acclaim for its outstanding performance. Taking the model JGX-0956A-72A as an example, it employs 304 or 316 stainless steel wire ropes tightly wound and fixed between upper and lower clamping plates, ensuring a robust and reliable structure. With a maximum static load capacity of 72kg, this model demonstrates exceptional load-bearing performance, effortlessly meeting the weight requirements of various equipment.

In terms of material selection, this series of isolators utilizes high-quality materials treated with specialized processes, endowing them with excellent corrosion resistance, impact resistance, and tolerance to extreme temperatures. Whether in scorching industrial workshops, freezing outdoor environments, or humid, salt-laden marine conditions, they maintain stable performance and operate efficiently over the long term.

Static-Load Curve

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures 0

No.	Model	Max Static Load (KG)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0956A-110A	110	34.0	275	135
2	JGX-0956A-104A	104	37.1	240	114
3	JGX-0956A-80A	80	40.1	180	84
4	JGX-0956A-75A	75	44.7	154	68
5	JGX-0956A-72A	72	49.8	137	60
6	JGX-0956A-40A	40	66.0	65	25
7	JGX-0956A-32A	32	68.1	51	19

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures 1

No.	Model	Max Static Load (KG)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0956A-110A	90.8	47.8	177	77
2	JGX-0956A-104A	84.0	51.8	156	67
3	JGX-0956A-80A	68.1	55.9	120	49
4	JGX-0956A-75A	63.6	63.0	103	40
5	JGX-0956A-72A	61.3	71.1	92	35
6	JGX-0956A-40A	34.8	91.9	44	16
7	JGX-0956A-32A	28.6	95.0	36	12

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures 2

No.	Model	Max Static Load (KG)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0956A-110A	70.3	36.1	98	98
2	JGX-0956A-104A	65.8	39.1	84	84
3	JGX-0956A-80A	49.9	42.2	58	58
4	JGX-0956A-75A	47.7	47.2	49	49
5	JGX-0956A-72A	45.4	52.8	44	44
6	JGX-0956A-40A	20.4	68.1	20	20
7	JGX-0956A-32A	15.9	71.1	15	15

Application Scenarios

1.In the marine industry,they are used for vibration isolation of engines and pump sets.

2.For precision instruments like lithography machines and testing equipment, they provide anti-vibration protection.

3.They also apply to vibration control of industrial machinery, rail transit vehicles, and building structure seismic resistance, effectively isolating shocks and vibrations in complex environments.

Customer Photos

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures 3
