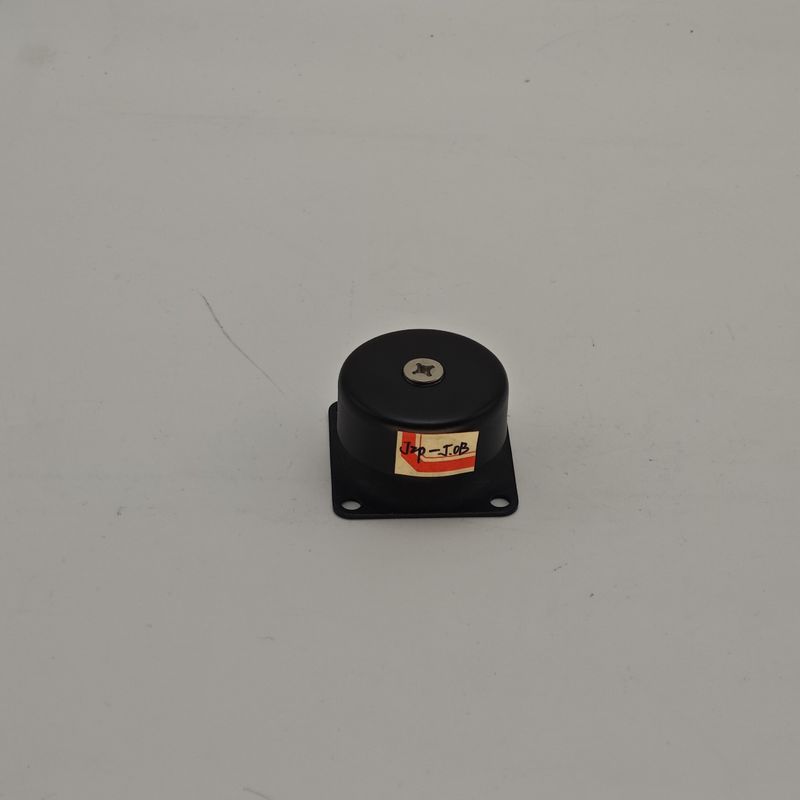

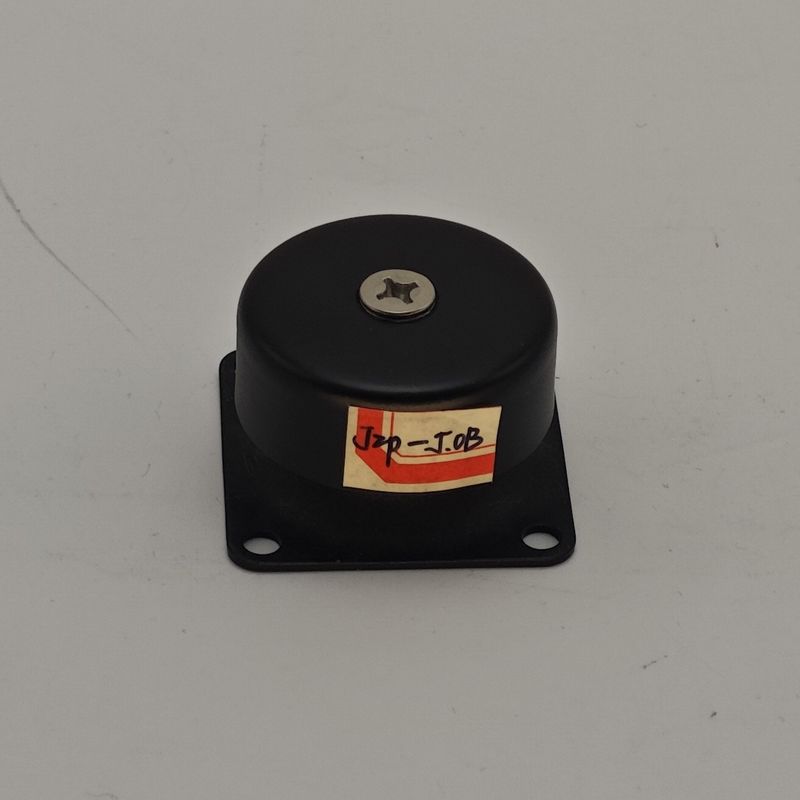

Name: JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.0B-SC
Availability: InStock

Casa. > prodotti > ammortizzatore di gomma >

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

Luogo di origine:

Cina

Marca:

Hoan

Numero di modello:

JZP-5.0B-SC

Contattaci

Chiedi un preventivo

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Dettagli del prodotto

Gamma di frequenza di vibrazione:

10Hz a 100Hz

Porta:

Xi'an o specificato

Dopo il servizio di garanzia:

supporto in linea

Prestazione:

Antiurto

Resistenza alle vibrazioni:

Alto

Tipo di marketing:

Nuovo prodotto 2025

Caratteristica:

larghe frequenze di lavoro, lunga durata di vita

Oem:

SÌ

Tipo di montaggio:

Filettato

Utilizzo:

Assorbimento di urti e vibrazioni

Temperatura di lavoro:

-55 ~ +120

Colore:

Nero

Costo:

Conveniente

Evidenziare:

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

Termini di pagamento e di spedizione

Quantità di ordine minimo

Termini di pagamento

L/C, D/A, D/P, Western Union, T/T, MoneyGram

Prodotti correlati

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Ottieni il miglior prezzo

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Ottieni il miglior prezzo

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Ottieni il miglior prezzo

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Ottieni il miglior prezzo

Contattaci

86-29-88292913

Contatta ora

Descrizione del prodotto

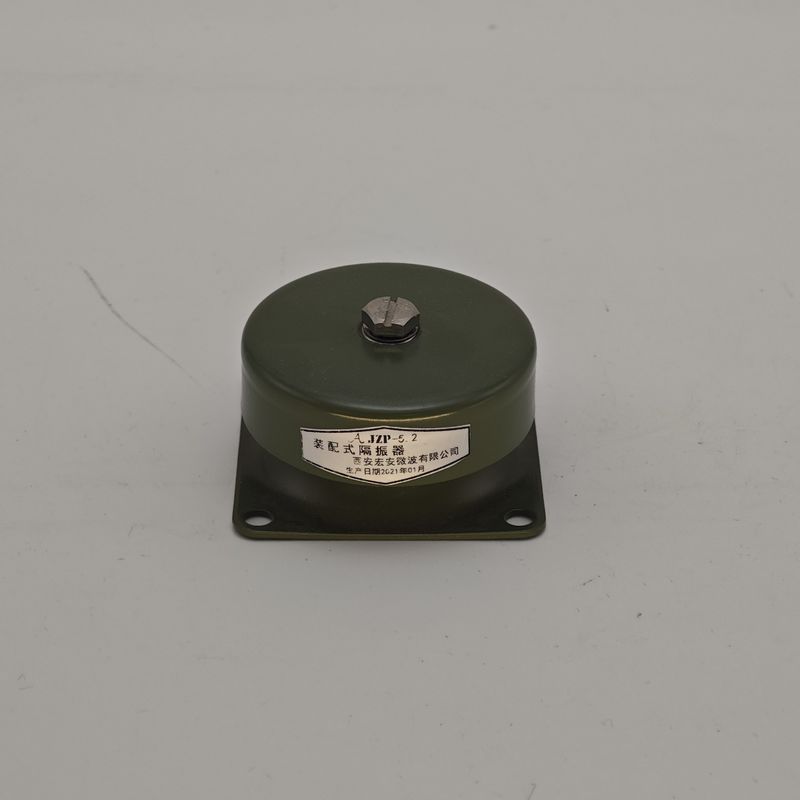

JZP-5.0B-SC Vibration Isolators - Tested Rubber Shock Absorbers for On-Vehicle Efficiency Validation

JZP-B-SC Series

From Lab to Road: Rigorous Testing and Quality Validation of the JZP Series Vibration Isolators

The reliability of a vibration isolator's performance cannot be based solely on theoretical calculations—it must withstand rigorous practical testing. Xi'an Hoan Microwave Co., Ltd. maintains a comprehensive testing and validation system for the JZP Series On-Vehicle Modular Vibration Isolators, from laboratory evaluations to real-vehicle trials, ensuring every product meets the highest standards.

Precise Evaluation in Laboratory Environments

During development, JZP Series prototypes undergo professional vibration testing:

Sinusoidal sweep frequency tests determine natural frequency and transmissibility curves
Random vibration tests simulate real road conditions to verify isolation efficiency
Shock tests evaluate ultimate load-bearing capacity and buffering performance

Environmental Adaptability Tests

The JZP Series undergoes extreme condition testing to ensure performance reliability:

High-low temperature alternating tests
Damp-heat resistance tests
Salt spray corrosion tests

Real-Vehicle Road Tests

Final validation comes from actual vehicle performance testing across diverse road conditions, with acceleration sensors collecting vibration data to demonstrate the JZP Series' superior isolation capabilities.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration

Impact
