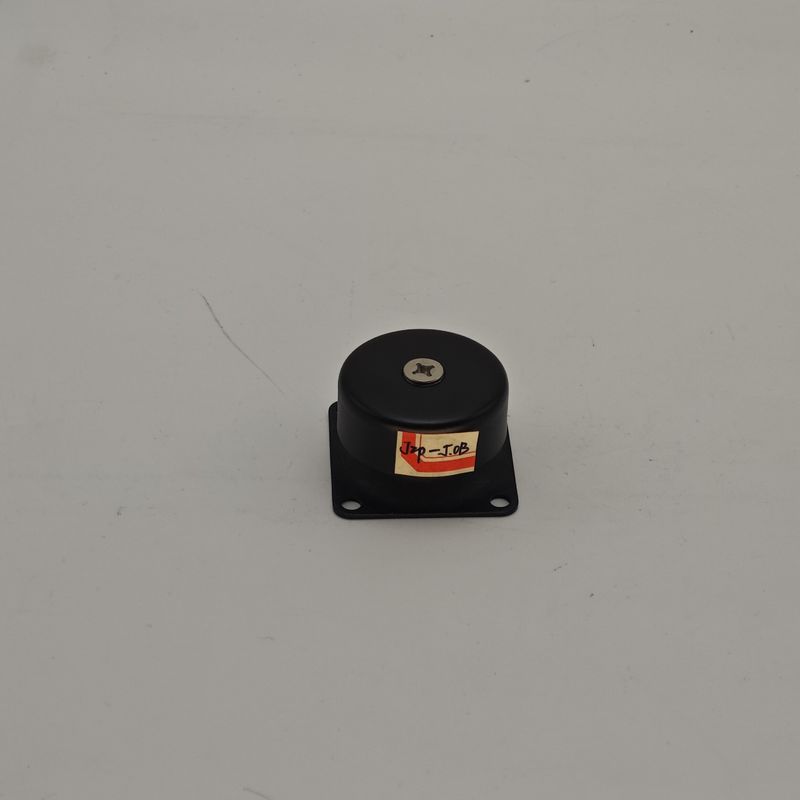

Name: JZP-1.5B-SC Vibration Isolator with 5-50Hz Vibration Frequency 10 Hz Natural Frequency and 1.5kg Maximum Load Capacity
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-1.5B-SC
Availability: InStock

Casa. > prodotti > ammortizzatore di gomma >

JZP-1.5B-SC Vibration Isolator with 5-50Hz Vibration Frequency 10 Hz Natural Frequency and 1.5kg Maximum Load Capacity

5-50Hz Vibration Frequency Vibration Isolator

10 Hz Natural Frequency Rubber Shock Absorber

1.5kg Maximum Load Capacity JZP Series Vibration Isolator

Luogo di origine:

Cina

Marca:

Hoan

Numero di modello:

JZP-1.5B-SC

Contattaci

Chiedi un preventivo

JZP-1.5B-SC Vibration Isolator with 5-50Hz Vibration Frequency 10 Hz Natural Frequency and 1.5kg Maximum Load Capacity

Dettagli del prodotto

Caratteristica:

Isolamento delle vibrazioni

Intervallo di pressione:

Alto

Funzione:

Ridurre il rumore e proteggere le apparecchiature

Alto:

30 mm

Tipo di isolamento delle vibrazioni:

Passivo

Formato di disegno:

DWG e PDF

Porta:

Xi'an o specificato

Riduzione delle vibrazioni:

Alto

Frequenza di vibrazione:

5-50HZ

Industrie applicabili:

Energia e mining

Componenti principali:

Motore, ingranaggio

Resistenza:

Resistenza all'abrasione e allo strappo

Stile di progettazione:

Industriale

Frequenza naturale:

10 Hz

Capacità di carico massima:

1,5 kg

Evidenziare:

5-50Hz Vibration Frequency Vibration Isolator

10 Hz Natural Frequency Rubber Shock Absorber

1.5kg Maximum Load Capacity JZP Series Vibration Isolator

Termini di pagamento e di spedizione

Quantità di ordine minimo

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Prodotti correlati

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Ottieni il miglior prezzo

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Ottieni il miglior prezzo

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Ottieni il miglior prezzo

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Ottieni il miglior prezzo

Contattaci

86-29-88292913

Contatta ora

Descrizione del prodotto

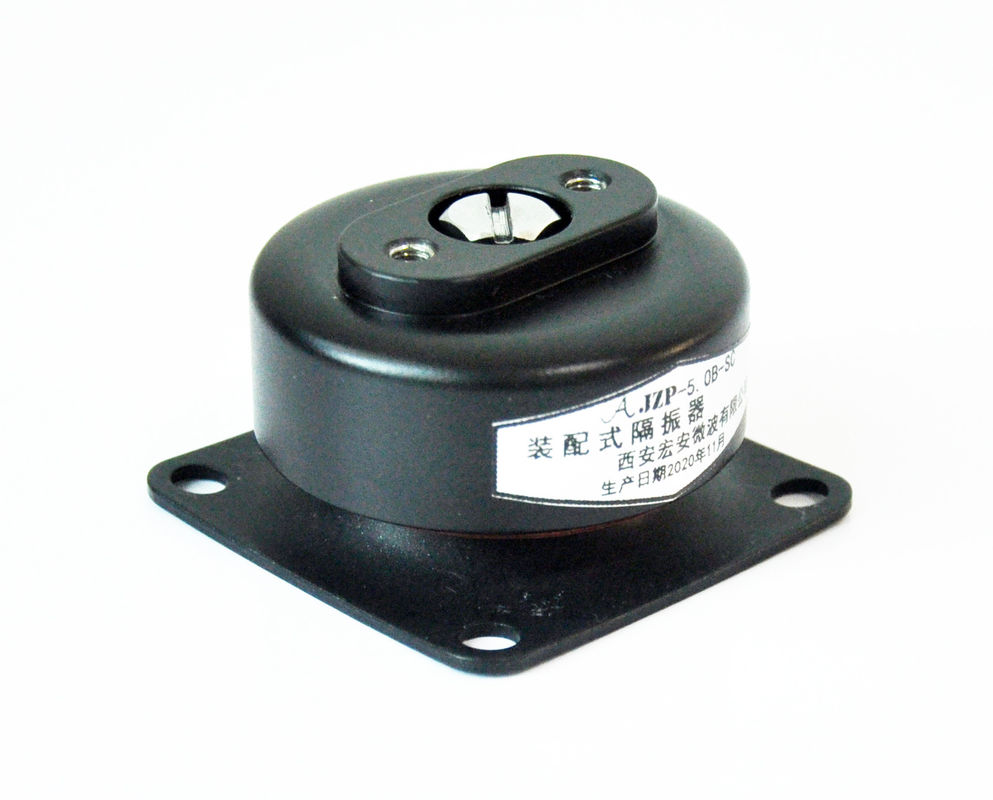

JZP-1.5B-SC Vibration Isolators

The Essential Component for Cost Reduction Efficiency Enhancement of On-Vehicle Equipment

JZP-B-SC Series

The Mobile Cornerstone of the Intelligent Era

Xi'an Hoan Microwave Co., Ltd.'s JZP Series On-Vehicle Modular Vibration Isolators are designed for seamless compatibility with intelligent on-vehicle systems in the 5G, IoT and AI technology era.

Key Features

Lightweight Design with High Load-Bearing Capacity: Adapts to various intelligent devices from edge computing gateways to server clusters with load capacity ranging from tens to hundreds of kilograms.
Electromagnetic Compatibility (EMC): Special design at metal/non-metal junctions minimizes electromagnetic interference while maintaining proper grounding.
Easy Maintenance & Upgrade: Modular design enables quick equipment maintenance or replacement without removing the entire vibration isolation system.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration

Impact

The JZP Series Vibration Isolators serve as the reliable bridge connecting traditional mechanical protection with modern intelligent equipment requirements.
