Name: JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-1.0B-SC
Availability: InStock

Casa. > prodotti > ammortizzatore di gomma >

JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate

M5 Mounting Hole Size Rubber Shock Absorber

1 inch Maximum Deflection Vibration Isolator

100-1000 lbs/in Spring Rate On-Vehicle Vibration Isolator

Luogo di origine:

Cina

Marca:

Hoan

Numero di modello:

JZP-1.0B-SC

Contattaci

Chiedi un preventivo

JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate

Dettagli del prodotto

Larghezza:

60 mm

Componenti principali:

Motore, ingranaggio

Forma:

Cilindrico

Resistenza alla corrosione:

Resistente alla corrosione

Oem:

SÌ

Dimensione del foro di montaggio:

Compatibilità:

Si adatta alla maggior parte dei sistemi di ammortizzatori standard

Flessibilità:

Flessibile

Tipo:

Ammortizzatore

Deflessione massima:

1 pollice

Tasso di primavera:

100-1000 libbre/in

Resistenza alla pressione:

Alto

Alto:

30 mm

Frequenza di vibrazione:

5-50HZ

Evidenziare:

M5 Mounting Hole Size Rubber Shock Absorber

1 inch Maximum Deflection Vibration Isolator

100-1000 lbs/in Spring Rate On-Vehicle Vibration Isolator

Termini di pagamento e di spedizione

Quantità di ordine minimo

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Prodotti correlati

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Ottieni il miglior prezzo

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Ottieni il miglior prezzo

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Ottieni il miglior prezzo

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Ottieni il miglior prezzo

Contattaci

86-29-88292913

Contatta ora

Descrizione del prodotto

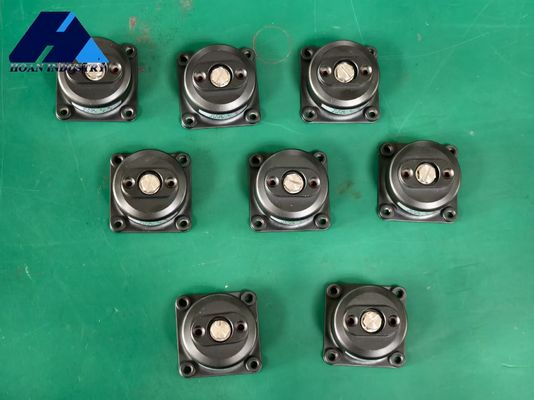

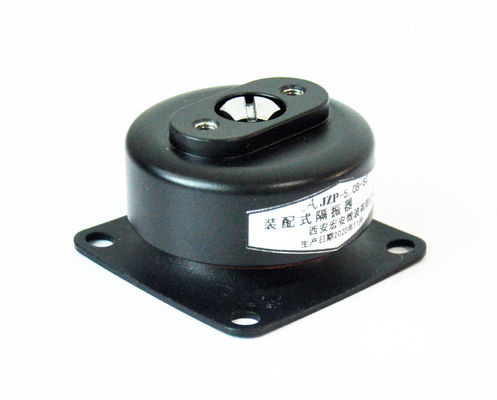

JZP-1.0B-SC On-Vehicle Modular Vibration Isolators

The Ultimate Protection and Stability Solution Rubber Shock Absorber

JZP-B-SC Series

Master Turbulence, Safeguard Core Stability: Xi'an Hoan's JZP Series Vibration Isolators redefine on-vehicle equipment stability with military-grade technology.

On moving vehicles, the greatest threat to precision electronic equipment comes from sustained vibration and impact. Drawing on military technology heritage, Xi'an Hoan Microwave Co., Ltd. developed the JZP Series as the "dynamic stability cornerstone" for on-vehicle precision equipment.

The JZP Series features an advanced modular structure combining high-damping elastic materials with precision-engineered mechanical components. This creates an efficient energy conversion system that absorbs and dissipates destructive vibrations, establishing a reliable buffer between equipment and vibration sources.

Unlike traditional shock-absorbing solutions, the JZP Series offers unparalleled adaptability. Its modular design allows flexible configuration for cabinets, servers, communication hosts, or precision sensors based on weight, center of gravity, and vibration sensitivity requirements.

Essential for military communications, emergency command, and remote sensing monitoring applications, these isolators enable high-tech equipment to maintain laboratory-grade stability even during high-speed vehicle movement.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration Characteristics

Impact Characteristics
