Name: GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR1-1.8A-A
Availability: InStock

Casa. > prodotti > Ammortizzatore di vibrazioni del cavo metallico >

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras

Place of Origin:

China

Marca:

Hoan

Certificazione:

ISO9001:2015

Model Number:

GR1-1.8A-A

Documento:

GR series.pdf

Contattaci

Chiedi un preventivo

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras

Dettagli del prodotto

Durability:

High

After Warranty Service:

Online support

Marketing Type:

Hot Product 2024

Type:

Vibration Isolator

Application:

Camera Stabilization

Warranty:

1 Year

Model:

GR1-1.8A-A

Mounting Type:

Screw-in

Port:

Xi'an or Specified

Compatibility:

Universal

Showroom Location:

None

Installation:

Easy

Core Components:

steel wire rope

Termini di pagamento e di spedizione

Minimum Order Quantity

Payment Terms

L/C,D/P,D/A,T/T,Western Union,MoneyGram

Prodotti correlati

GR1-3.3D-A Adjustable Steel Wire Rope Vibration Isolator for Cameras

Ottieni il miglior prezzo

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras

Ottieni il miglior prezzo

GR1-2.4A-A Aluminum Alloy Vibration Isolator for Helicopter Drone Cameras

Ottieni il miglior prezzo

JGX-2228A-380A Collaborazione Intelligente e Produzione Sostenibile con Isolatore di Vibrazioni a Fune

Ottieni il miglior prezzo

Contattaci

86-29-88292913

Contatta ora

Descrizione del prodotto

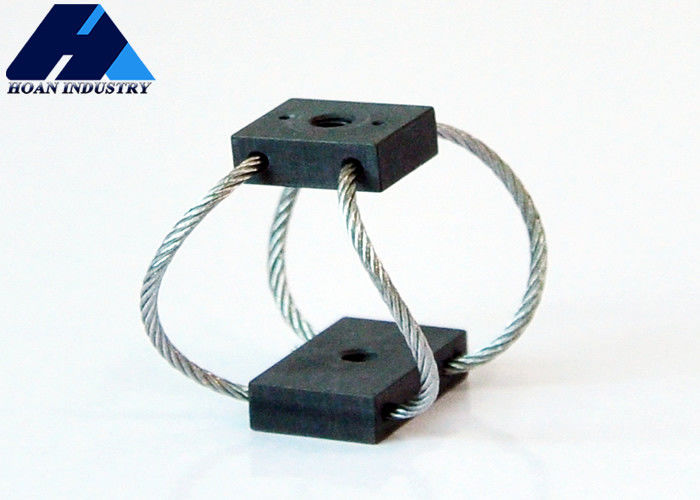

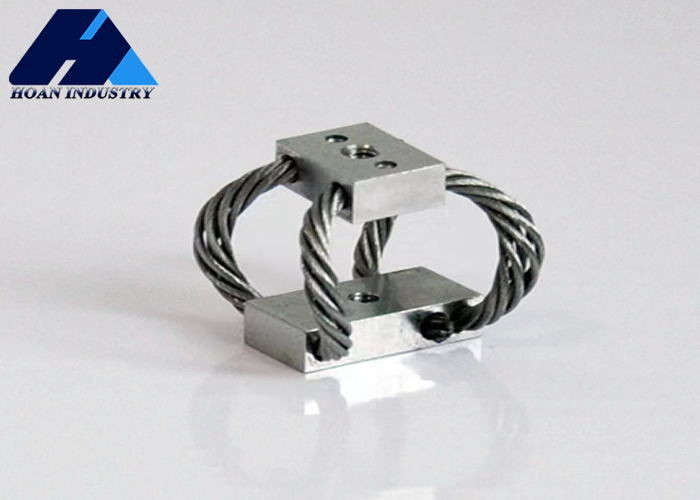

High-Performance Stainless Steel GR1-1.8A-A Butterfly-Shaped Vibration Isolator

Product Specifications

Attribute	Value
Model	GR1-1.8A-A
Type	Vibration Isolator
Application	Camera Stabilization
Mounting Type	Screw-in
Core Components	Steel wire rope
Durability	High
Warranty	1 Year
Installation	Easy

Product Description

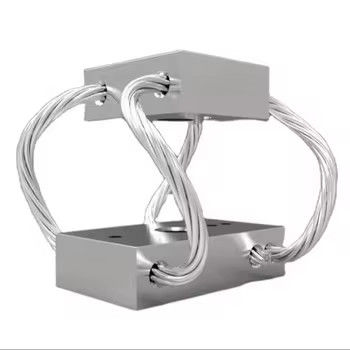

GR1 Series Butterfly-Shaped Vibration Isolator

Designed for compact equipment layouts and harsh environmental conditions, the GR1 steel wire rope vibration isolator features a butterfly-shaped design that delivers excellent vibration isolation performance in confined spaces. Constructed from high-performance stainless steel, it offers corrosion resistance, extreme temperature tolerance (-40℃ to +150℃), and oil resistance, making it ideal for challenging environments like offshore platforms, field mobile shelters, and extreme climate operations.

Dimension Parameters

Model	Height(mm) ±1.5	Width(mm)	Weight(kg)	Mounting Options	Thru Hole(mm)	Thread(mm)	C'sink(°)
GR1-3.3A-A	17	19	0.05	A,B,C,D,E,S	∅3.3	M3*0.5	90
GR1-2.4A-A	19	20	0.05
GR1-1.8A-A	23	23	0.05
GR1-1.3A-A	26	26	0.05

Static-Load Performance

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR1-3.3A-A	3.3	6.4	3.9	1.9
2	GR1-2.4A-A	2.4	8.4	2.8	1.2
3	GR1-1.8A-A	1.8	11.9	1.8	0.6
4	GR1-1.3A-A	1.3	15	1.3	0.4

Mounting Options

Frequently Asked Questions

Are you a trading company or manufacturer?

We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.

How long is your delivery time?

If we have stock, we can delivery immediately. If no stock, depends on QTY, but normally no more than 20 working days.

Can the products be manufactured by customer's requirement?

Yes, OEM service available.

What do you need to know for fast quotation?

I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device.

Customer Application Photos
